こんにちは。バックエンドエンジニアの安本です。
弊社も、新しいサービスはPRODUCTIONでECSが動いております。
現在は、既存の動いているサービスのECS化移行に向け取り組んでいますが
いろいろ考えることが多く、各社の記事を参考に四苦八苦しているところです。
ECS化検証の一環として、ecspressoに触れたので、マストドンをデプロイしたコードを共有します。
ecspressoとは
- https://github.com/kayac/ecspresso
- ECSのデプロイツール

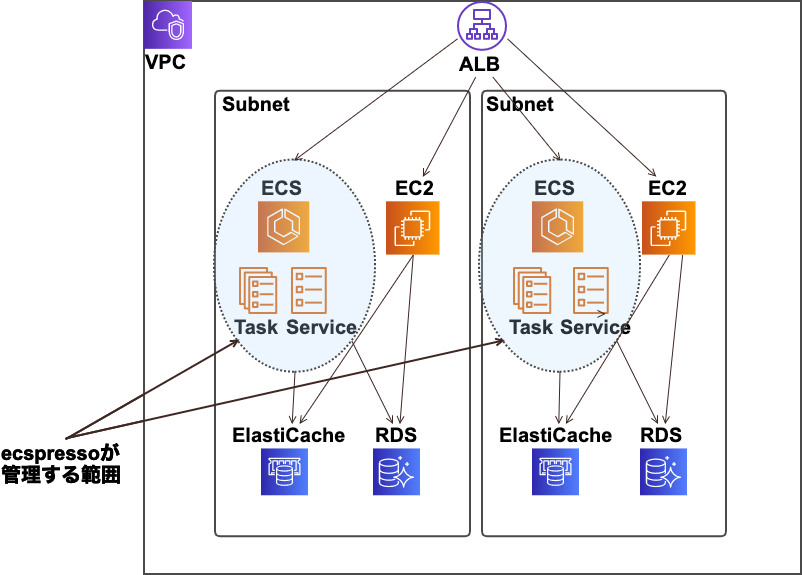

- ServiceとTaskのみに特化して管理している
やったこと
サンプルコード
Railsとsidekiqを別Serviceで起動させる
デプロイフロー
準備
関連リソース構築
- terraform。Service、Taskは管理していない。
$ cd terraform
$ terraform plan
$ terraform apply
ECRにマストドンimageをpush
ひとまずcloud9でbuildしてpushしておく。
$ git clone https://github.com/tootsuite/mastodon.git $ cd mastodon $ aws ecr get-login-password --region ap-northeast-1 | docker login --username AWS --password-stdin 048225877211.dkr.ecr.ap-northeast-1.amazonaws.com $ docker build -t mastodon . $ docker tag mastodon:latest 048225877211.dkr.ecr.ap-northeast-1.amazonaws.com/mastodon:latest $ docker push 048225877211.dkr.ecr.ap-northeast-1.amazonaws.com/mastodon:latest
タスクの作成
- AWS Webコンソールで構築していく
- 各設定についてはここらへんを参照

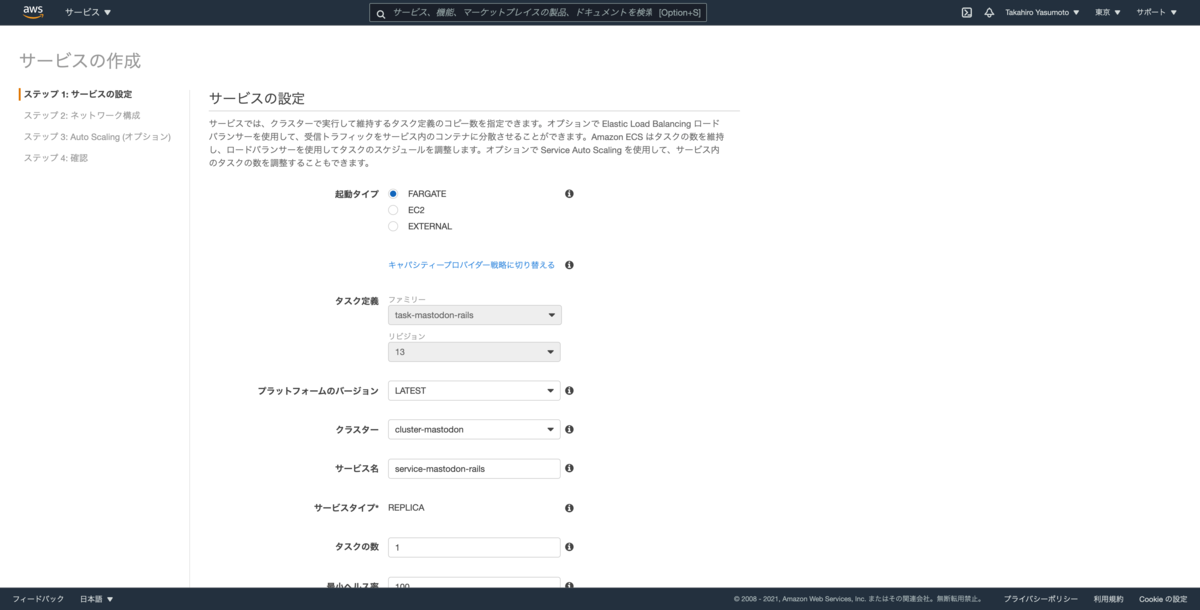

サービスの作成
- AWS Webコンソールで構築していく
- 各設定についてはここらへんを参照

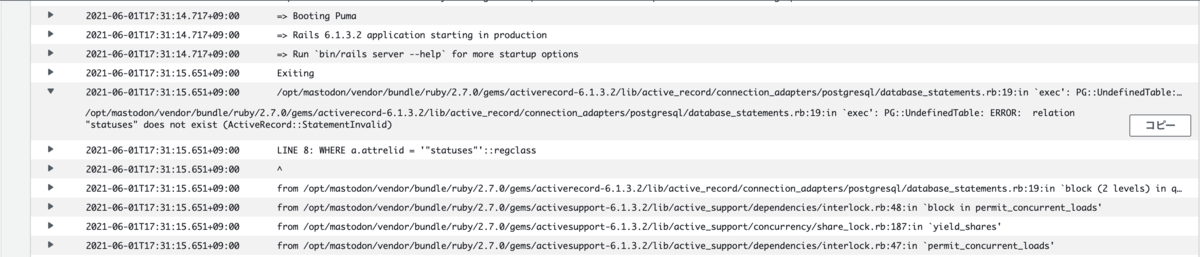

ログの確認
- migrateは実行していないので、DBエラー。(それ以外のエラーは出ていなさそうなことを確認)
ecspresso
既存サービスの取り込み
- 先程、作成したタスク、サービスを取り込む
$ ecspresso init --region ap-northeast-1 --cluster cluster-mastodon --service service-mastodon-rails --config rails.yaml 2021/06/01 17:35:35 service-mastodon-rails/cluster-mastodon save service definition to ecs-service-def.json 2021/06/01 17:35:35 service-mastodon-rails/cluster-mastodon save task definition to ecs-task-def.json 2021/06/01 17:35:35 service-mastodon-rails/cluster-mastodon save config to rails.yaml
- わかりやすく、ファイル名を整理する
$ ls ecspresso
rails-service-def.json
rails-task-def.json
rails.yaml
db:create; db:migrate
run
コマンドの--overrides
オプションを用いてdb:create
db:migrate
をする
$ ecspresso --config rails.yaml run --overrides '{"containerOverrides": [{"name":"web", "command": ["rails","db:create"]}]}' 2021/06/01 17:44:59 service-mastodon-rails/cluster-mastodon Running task Service: service-mastodon-rails Cluster: cluster-mastodon TaskDefinition: task-mastodon-rails:13 Deployments: PRIMARY task-mastodon-rails:13 desired:1 pending:1 running:0 Events: 2021/06/01 17:45:00 service-mastodon-rails/cluster-mastodon Registering a new task definition... 2021/06/01 17:45:00 service-mastodon-rails/cluster-mastodon Task definition is registered task-mastodon-rails:14 2021/06/01 17:45:00 service-mastodon-rails/cluster-mastodon Running task2021/06/01 17:45:57 Database 'mastodon' already exists 2021/06/01 17:46:23 service-mastodon-rails/cluster-mastodon Run task completed!
$ ecspresso --config rails.yaml run --overrides '{"containerOverrides": [{"name":"web", "command": ["rails","db:migrate"]}]}' 2021/06/01 17:51:06 service-mastodon-rails/cluster-mastodon Running task Service: service-mastodon-rails Cluster: cluster-mastodon TaskDefinition: task-mastodon-rails:13 Deployments: PRIMARY task-mastodon-rails:13 desired:1 pending:1 running:0 Events: 2021/06/01 17:51:10 service-mastodon-rails/cluster-mastodon Registering a new task definition... 2021/06/01 17:51:10 service-mastodon-rails/cluster-mastodon Task definition is registered task-mastodon-rails:15 2021/06/01 17:52:41 service-mastodon-rails/cluster-mastodon Run task completed!
sidekiq
- Railsの手順と同様に、AWS Webコンソールでタスク、サービスをポチポチ作成し、ecspressoで設定ファイルを取り込む。
$ ecspresso init --region ap-northeast-1 --cluster cluster-mastodon --service service-mastodon-sidekiq --config sidekiq.yaml 2021/06/01 21:47:21 service-mastodon-sidekiq/cluster-mastodon save service definition to ecs-service-def.json 2021/06/01 21:47:21 service-mastodon-sidekiq/cluster-mastodon save task definition to ecs-task-def.json 2021/06/01 21:47:21 service-mastodon-sidekiq/cluster-mastodon save config to sidekiq.yaml
- わかりやすく、ファイル名を整理する
$ ls ecspresso
sidekiq-service-def.json
sidekiq-task-def.json
sidekiq.yaml
Github ActionsでDeploy
Workflow
name: Deploy to Amazon ECS on: push: branches: - main jobs: deploy: runs-on: ubuntu-latest env: IMAGE_TAG: latest steps: - name: Checkout uses: actions/checkout@v2 - name: Checkout uses: actions/checkout@v2 with: repository: yasumotty/mastodon token: ${{ secrets.PERSONAL_ACCESS_TOKEN }} path: mastodon ref: feature/ecs_deploy - name: Configure AWS credentials uses: aws-actions/configure-aws-credentials@v1 with: aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID }} aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }} aws-region: ap-northeast-1 - name: Login to Amazon ECR id: login-ecr uses: aws-actions/amazon-ecr-login@v1 - name: Build, tag, and push app image to Amazon ECR id: build env: DOCKER_BUILDKIT: 1 ECR_REGISTRY: ${{ steps.login-ecr.outputs.registry }} ECR_REPOSITORY: mastodon IMAGE_TAG: ${{ github.sha }} run: | docker build \ --cache-from=$ECR_REGISTRY/$ECR_REPOSITORY:latest --build-arg BUILDKIT_INLINE_CACHE=1 \ -t mastodon ./mastodon/ docker tag mastodon:latest $ECR_REGISTRY/$ECR_REPOSITORY:latest docker push $ECR_REGISTRY/$ECR_REPOSITORY:latest - uses: kayac/ecspresso@v1 with: version: v1.5.4 - name: db:migrate run: | ecspresso run --config ecspresso/rails.yaml --overrides '{"containerOverrides": [{"name":"web", "command": ["rails","db:migrate"]}]}' --latest-task-definition - name: deploy rails run: | ecspresso deploy --config ecspresso/rails.yaml --latest-task-definition - name: deploy sidekiq run: | ecspresso deploy --config ecspresso/sidekiq.yaml --latest-task-definition
動作確認

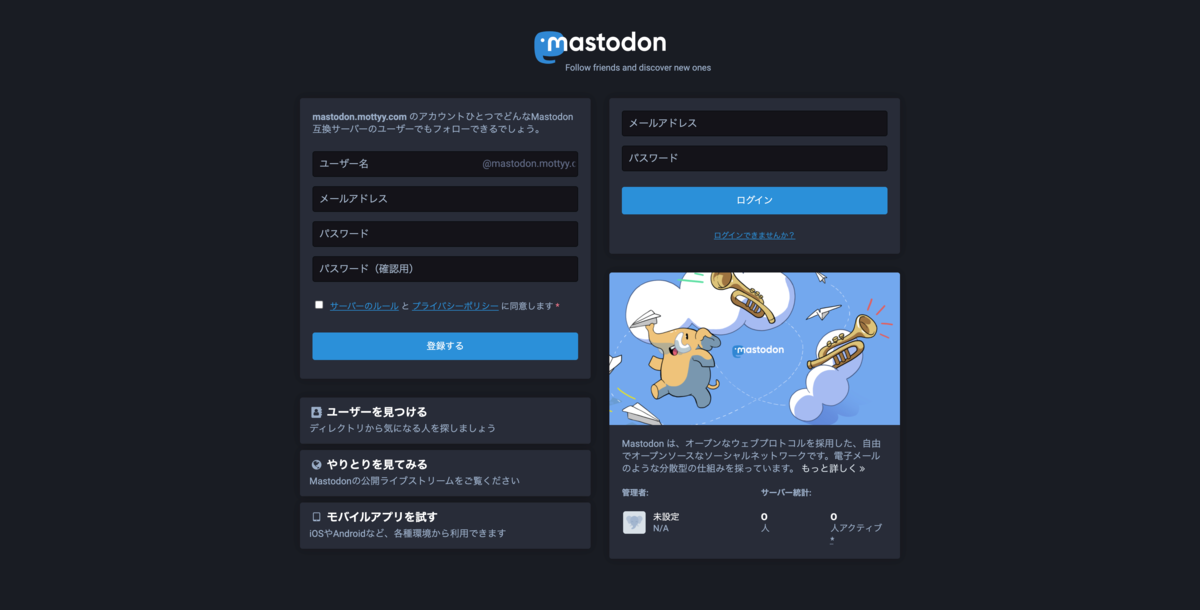

- Topページが見れた🎉
Fargateコンテナに入りたい
enableExecuteCommand
をtrue
にする
enableExecuteCommand
をtrue
にする必要がるので、serviceをdeleteして、createする。
$ ecspresso --config ecspresso/sidekiq.yaml delete
$ git diff ecspresso/sidekiq-service-def.json - "enableExecuteCommand": false, + "enableExecuteCommand": true,
$ ecspresso --config ecspresso/sidekiq.yaml create
コンテナに入る🎉🎉🎉
$ ecspresso exec --config ecspresso/sidekiq.yaml --command bash 4e9602e2c3704a1d8d5f2603bd499dd8 task-mastodon-sidekiq:9 RUNNING RUNNING 2021-06-01T22:37:57+09:00 service:service-mastodon-sidekiq FARGATE c9f7f781f4684de88273871047730a88 task-mastodon-sidekiq:9 RUNNING RUNNING 2021-06-01T22:37:57+09:00 service:service-mastodon-sidekiq FARGATE Enter task ID: 4e9602e2c3704a1d8d5f2603bd499dd8 task ID=4e9602e2c3704a1d8d5f2603bd499dd8 Starting session with SessionId: ecs-execute-command-07d68c8447477063f root@ip-10-0-88-67:/opt/mastodon# ./bin/rails c Chewy console strategy is `urgent` Loading production environment (Rails 6.1.3.1) irb(main):001:0> User.all => #<ActiveRecord::Relation []>
まとめ
- 抽象化されているので、アプリケーション寄りのエンジニアとしてはとてもわかりやすかった
- 周辺リソース管理と切り離されているので、アプリケーション側は service / task の運用のみに集中できる
- 設定ファイル群が管理しやすい
- 新機能の追従がされている
- コンテナに入れるの感動する
- 本題とは関係ないが、マストドンについて詳しくなった
